Inch Lbs to Nm Calculator - Torque Conversion With Exact Factor

An inch lbs to nm calculator converts a torque written in inch-pounds (in\u00b7lbf) into a torque in newton-meters (N\u00b7m) using the exact NIST factor 0.1129848290276 N\u00b7m per in-lb, and it also runs the reverse direction so a metric spec sheet can be read as an inch-pound value for a torque wrench.

• • Torque wrench conversions: An 80 in-lb click-style wrench setting is checked against a service-manual N\u00b7m spec without manual multiplication.
• • Bicycle, motorcycle, and furniture assembly: Bolt torque values printed in N\u00b7m on a European spec are read in in-lb for an imperial torque wrench.
• • Reverse direction for spec sheets: A torque in N\u00b7m from a CAD or service file is read in in-lb for an imperial wrench or shop practice.
• • Cross-check ft-lb, kgf\u00b7cm, and ozf\u00b7in: The same torque value is shown in foot-pounds, kilogram-force centimetres, and ounce-force inches so the same number can be checked against any of the four common torque scales.

Inch-pound and newton-meter both measure torque, which is force applied at a distance. The conversion is exact because both sides are defined in SI: 1 inch is exactly 0.0254 m and 1 pound-force is exactly 4.4482216152605 N, so 1 in\u00b7lbf is exactly 0.1129848290276 N\u00b7m.

For a wider torque conversion that covers ft-lb, kgf\u00b7m, and dyn\u00b7cm alongside in-lb and N\u00b7m, Torque Converter runs the same factor table over a broader torque family.

The conversion runs through a single exact factor. The core formula is N\u00b7m = in\u00b7lbf \u00d7 0.1129848290276. The reverse direction is in\u00b7lbf = N\u00b7m \u00f7 0.1129848290276.

• in\u00b7lbf: Torque in inch-pounds; the imperial unit printed on most US-spec torque wrenches.
• N\u00b7m: Torque in newton-meters; the SI unit printed on most service manuals and metric spec sheets.
• Factor 0.1129848290276: Exact conversion factor derived from 0.0254 m \u00d7 4.4482216152605 N, the international inch and pound-force definitions.

Both directions are exposed so the last-edited input is the source of truth. The cross outputs in ft-lb, kgf\u00b7cm, and ozf\u00b7in use the same torque value, so a single entry feeds every output in the result panel.

According to NIST Handbook 44 Appendix B, one pound-force equals exactly 4.4482216152605 newtons, and combined with the international inch of 0.0254 m, this gives an exact inch-pound to newton-meter factor of 0.1129848290276.

For a wider SI torque workflow that starts from newton-meters and reads other metric torque units, Newton Meter Calculator applies the same SI definitions on the newton-meter side of the family.

The main ideas behind an inch lbs to nm calculator are torque as a force-times-distance product, the difference between in-lb and ft-lb, the role of the pound-force definition, and the SI status of the newton-meter.

The in-lb \u2194 N\u00b7m factor is exact, which means a torque spec on a wrench or a service sheet can be copied across unit systems without rounding error. Display rounding is controlled by the precision selector, but the math behind it is the full 13-digit constant.

According to NIST Special Publication 811, the international inch is defined as exactly 0.0254 meters, which is the lever-arm base for the inch-pound to newton-meter factor.

For a force-only workflow that does not multiply by a lever arm, Lbs to Newton runs the same 4.4482216152605 N/lbf factor on the pound-force to newton side of the family.

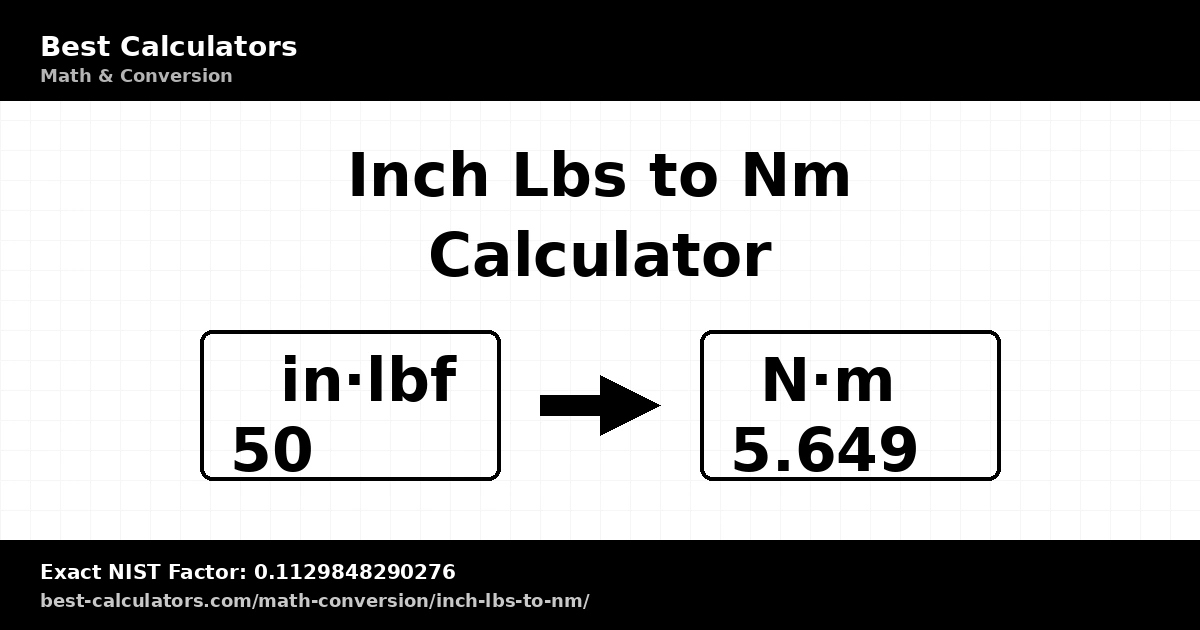

The calculator is built so that the inch-pound side, the newton-meter side, and the cross outputs are all visible at the same time, and the last edited torque field decides which side updates.

1. 1 Pick a side and enter the torque: Type a torque in in-lb to read N\u00b7m, or type a torque in N\u00b7m to read in-lb. The other side updates as you type, and the ft-lb, kgf\u00b7cm, and ozf\u00b7in rows follow the same torque value.
2. 2 Adjust the decimal places: Use the precision selector to match the rounding in the surrounding record: zero for a fast shop estimate, three for a service-manual spec, six for a high-precision spec sheet.
3. 3 Read the cross outputs: Use ft-lb for an imperial service manual, kgf\u00b7cm for an Asian or European spec sheet, and ozf\u00b7in for a small-electronics spec. The same torque value is shown in every unit.
4. 4 Cross-check a value before applying it: If a service manual lists a torque in N\u00b7m, type it into the N\u00b7m field and read the in-lb result. The wrench is then set to the in-lb value, and the cross outputs verify the same torque.
5. 5 Reset before the next entry: Use Reset to clear the N\u00b7m field and return the in-lb field to 50 in-lb, so the next conversion starts from a known default.

A bicycle stem is tightened to a 5 N\u00b7m spec on the manual. Type 0 into the in-lb field and 5 into the N\u00b7m field, and the calculator returns about 44.254 in-lb. Set a 3/8 in drive torque wrench to 44.3 in-lb, and the cross output shows about 3.69 ft-lb for a quick visual check against a foot-pound wrench if one is on hand.

For an engine performance workflow that takes a torque value into horsepower, Torque to Horsepower Calculator multiplies the same torque reading by an RPM value to land at mechanical horsepower.

The benefit of a focused inch lbs to nm calculator is that the factor is exact, the cross outputs cover the four common torque scales, and the result is auditable against the service-manual spec.

• • Exact NIST factor: The in-lb \u2194 N\u00b7m conversion uses 0.1129848290276, which is exact because the inch and pound-force definitions are exact. No rounding is hidden in the math.
• • Bidirectional in one place: Type in-lb to read N\u00b7m, or type N\u00b7m to read in-lb, without re-entering values or switching modes. The same exact factor is used in both directions.
• • Four-unit cross output: ft-lb, kgf\u00b7cm, and ozf\u00b7in are shown alongside the in-lb and N\u00b7m results, so the same torque can be checked against any common service-manual scale.
• • Decimal precision selector: Choose zero for a fast shop estimate, three for a service-manual spec, or six for a high-precision CAD or calibration record.
• • Auditable factor display: The active factor and unit math are shown in the result panel, so a torque spec on a wrench or a manual can be checked against the source instead of trusted as an unexplained number.
• • Useful in bicycle, auto, and small-engine work: A 5 N\u00b7m bicycle stem, an 80 in-lb automotive accessory bolt, and a 10 in-lb electronics spec can all be entered directly without manual unit conversion.

The page is also useful during transcription. A torque value copied from a service manual, spec sheet, or CAD file can be checked in the calculator before it is entered into a work order or a wrench setting.

For a mass-only imperial/metric workflow that is not torque-bound, Kg to Lbs Converter applies the same exact NIST factors on the kilogram to pound side of the family.

The conversion itself is a single multiplication, but the way the result is used depends on the spec, the wrench, and the working conditions.

• • The calculator only reports the torque implied by the entered inch-pound or newton-meter value. It does not pick a torque for a particular fastener, override a printed spec, or estimate behaviour at extreme temperature or under repeated cycles.
• • Reference factors are exact by definition, but a service-manual spec is still only as accurate as the wrench used to apply it. A calibrated wrench should be used for safety-critical fasteners.

The most common mistake in an in-lb \u2194 N\u00b7m workflow is to confuse in-lb with ft-lb. A 60 in-lb reading is 5 ft-lb, not 60 ft-lb. The calculator shows both, and the right scale depends on the wrench and the manual.

According to BIPM SI Brochure, the newton-meter is the coherent SI derived unit of torque, and the calculator uses it as the SI side of the in-lb \u2194 N\u00b7m conversion.
